Escort Fuse Box

[pnwrs2000]

Howdie !



Could anyone tell me / point me in the direction of where I'd find out what fuses do what on my mk2 1300 Escort please.



I'm looking to change the fuse box to a more modern one with the blade type fuses but I'm not sure what the fuse ratings are & which fuses do what etc.



Cheers in advance

Darren

[DT36]

I've been looking at one of these. Although I wouldn't really worry about what fuse is what though when changing it, as I'd just do it one off one on until the board is swapped over.

I've considered the 10 blade box, as this gives a few spare if needed.

http://www.12voltplanet.co.uk/standard-blade-fuse-box-with-leds-10-way.html

[katana]

I've been looking at one of these. Although I wouldn't really worry about what fuse is what though when changing it, as I'd just do it one off one on until the board is swapped over.

I've considered the 10 blade box, as this gives a few spare if needed.

http://www.12voltplanet.co.uk/standard-blade-fuse-box-with-leds-10-way.html

That'll work up to a point but not all circuits are common live. Most cars will have permanent battery live and switched Ignition live - using that type you'd need one box for each. Like the LED fuse blown indicators though!

[pnwrs2000]

Cheers.



I do want to know which fuse does what though aswell because I need to trace an earth problem I've got and also I can't tell what ratings the current fuses are

[DT36]

I have a Haynes manual that I'll dig out later and check.

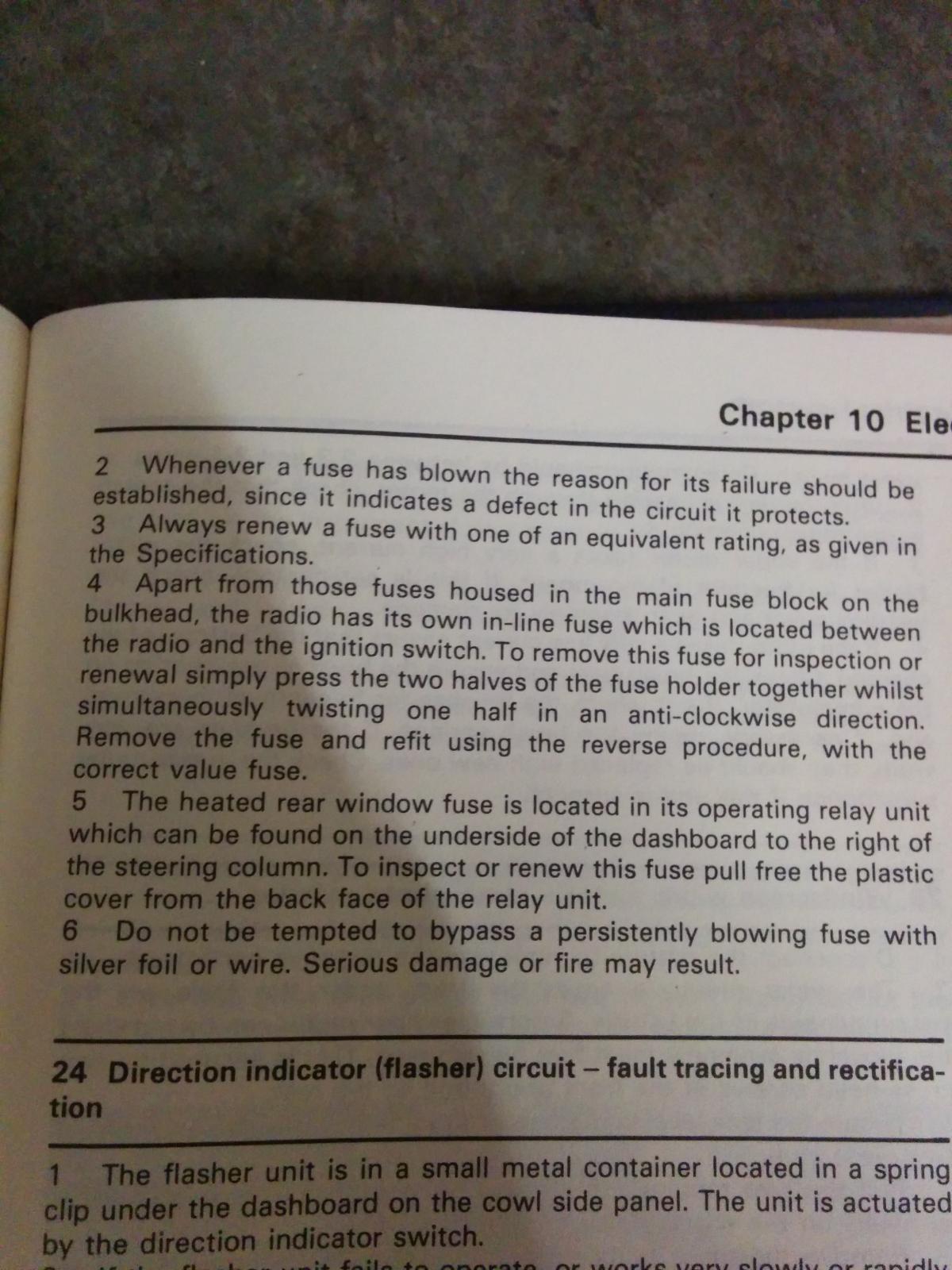

Edit. Here it is :

[pnwrs2000]

Cheers dt36.



I've bought one of the fancy led fuse boxes from 12v planet so hopefully that'll be good.

[DT36]

Cheers dt36.

I've bought one of the fancy led fuse boxes from 12v planet so hopefully that'll be good.

Glad to be of help. Let us know how you get on with it.
