Looking for gearbox parts and where to get cologne v4 assembly information/manual.

[davidgalea]

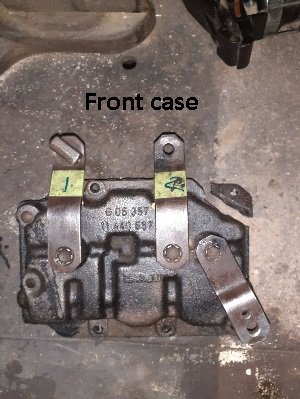

Specifically looking for the part that has the shifter forks and selectors(see pic)..the gearbox is the type H or F depending on the literature. it is the external linkage gearbox.. also any leads/ name of books regarding an assembly manual for the v4 cologne, i can't find much.

I took the gearbox to a repair shop and they broke the corner off the part by tightening too much.. they also used a sheet of paper from a calendar as a gasket and didn't notice that 3 synchro hub assembly teeth fell to the bottom of the case. I'm currently rebuilding the gearbox myself.

I would really like to replace the broken part (I get very irritated every time I think about it) and it will be on my mind every time I use the car..last resort I will weld it with a nickel rod or braze it with silicone bronze. thank

[colr6]

That looks very similar to the v6 3ltr mk1 Capri box. Could be another avenue for info.

[davidgalea]

2 hours ago, colr6 said:

That looks very similar to the v6 3ltr mk1 Capri box. Could be another avenue for info.

It would make sense..the gearbox is from my capri v4 cologne which is very similar in design to a v6 cologne. I wish I had some documentation but the only manuals and parts catalogues I have only cover the british capri..
