Doin the Alternator swop!

[chinkamon]

So I started.....but not finished boo!!

Removed the old dynamo- nowt wrong with it but fancy a few luxury so she had to go- toyed with the idea of a set from 105speed but by the time I got round to buying it, it had gone up in price haha!!

Spoke to graeme at gsEscorts and he said yup I no wot ya need £50 delivered!!! That's the Alternator, brackets, and belt!

So I read a few notes saying u need to extend the bracket put some washers in etc etc etc

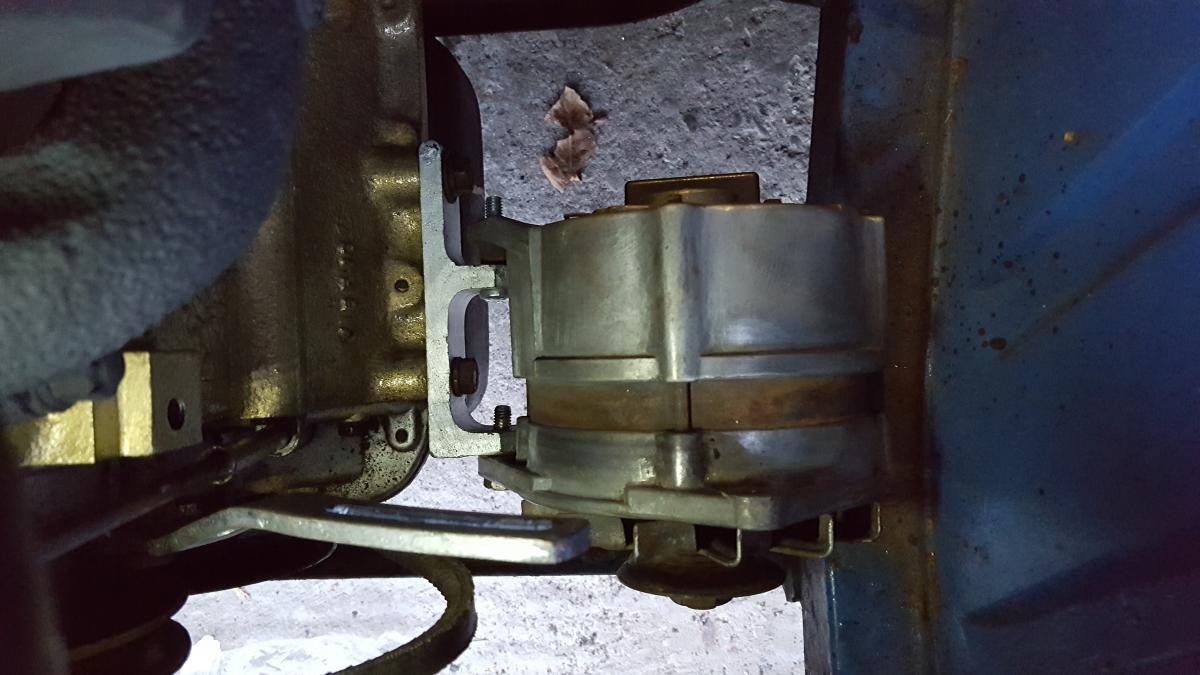

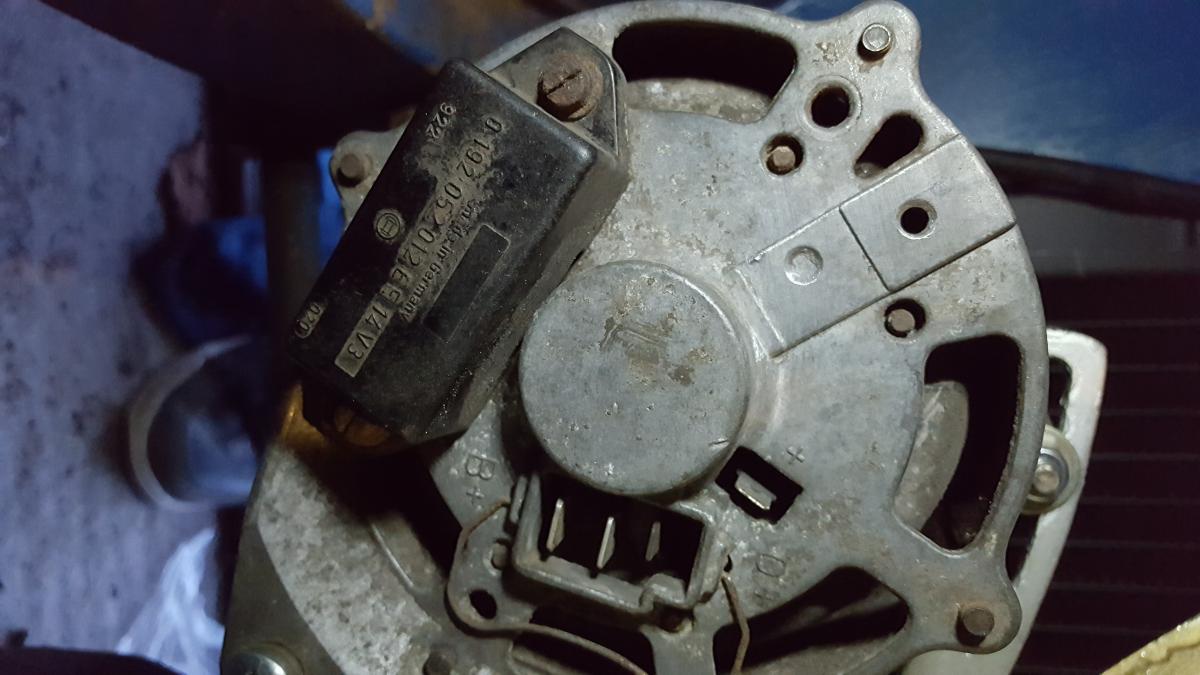

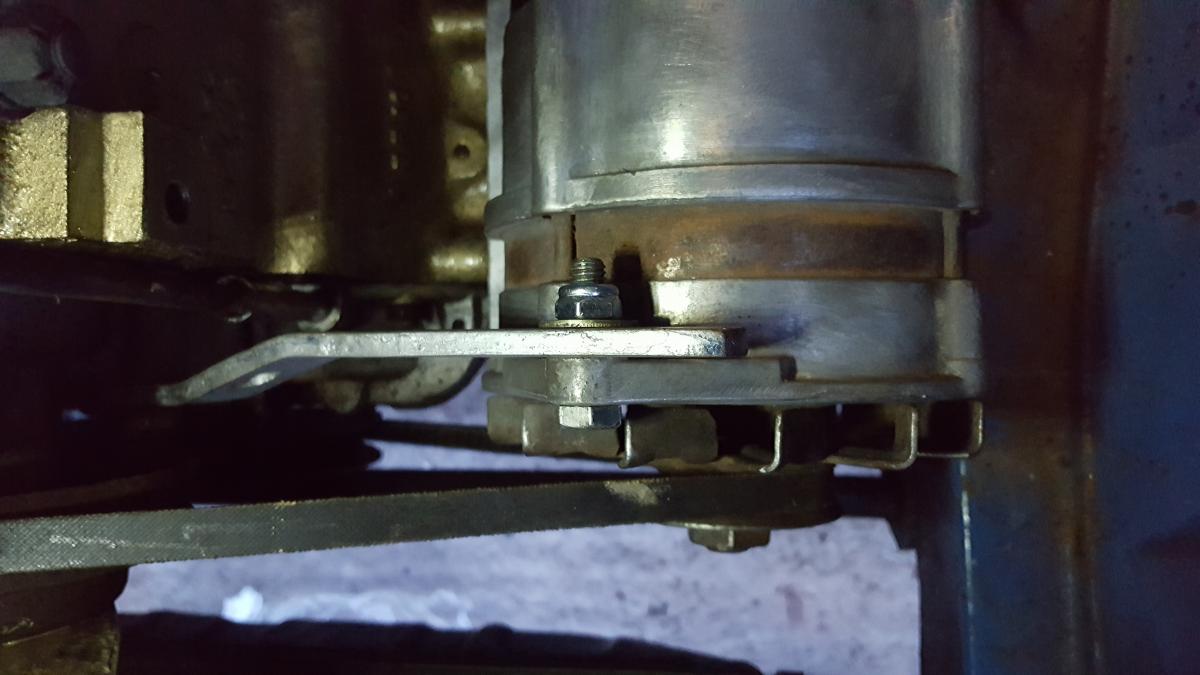

How ever mine seems to be spot on.....see pictures and feel free to tell me otherwise I won't be offended however every article I have and can see is a bit vague on the wiring of the Alternator ( not the removal of the regulator ) I have a brown an yellow thick wire an a green an brown thinner but there's a couple of connectors on the back of the Alternator so......which goes where?!

[colr6]

Small wire on small spade. Big wire on either large spades. Think the small spade on its own is for suppressor

[chinkamon]

Knew ud answer pretty quick col! So I can ignore the 1 on its own then? That was wot was concerning me so thought I'd be cautious!

[colr6]

Sure my alt has that connected to a suppressor. But like most altos big spades charging and the small spade field wire- ign light and exiter wire.

[chinkamon]

So should I go gettin a suppressor?!

[colr6]

Only for radio as far as I know

[chinkamon]

Hmmmmm I have a modern radio I was going to hide out of site. I suppose wire it up an if it interferes look for a suppressor??
