Weber 32 DGV 7A - Can it be saved?

[Johnny Boy]

28 minutes ago, Huge said:

Advice please Re carburettor- since servicing it the performance has been really good ...but my mixture screw is fully in, would changing back to original air filter work?

No , something is wrong if it is wound right in , to run correctly.

[Huge]

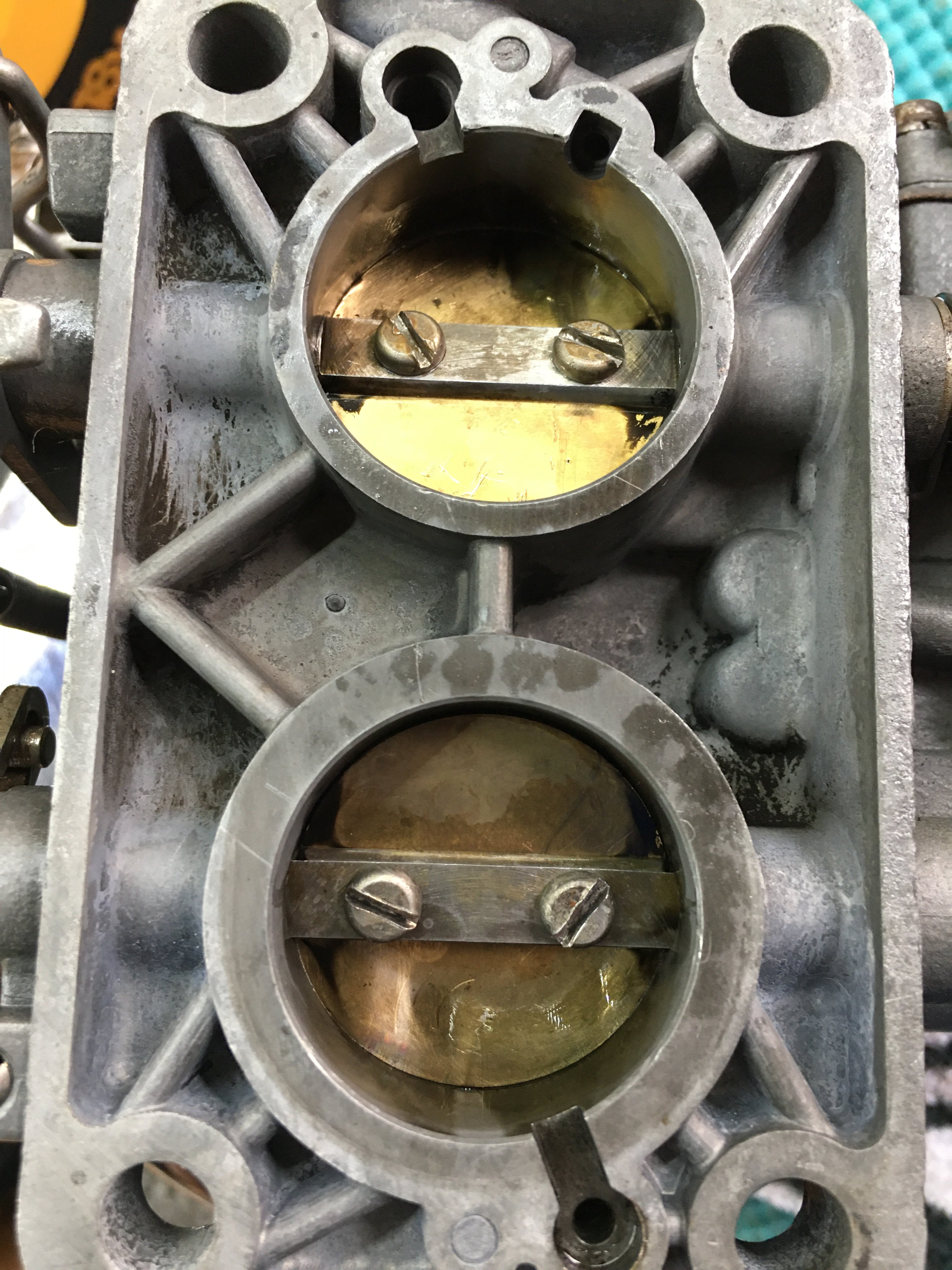

Investigation shows I re-assembled the Carb incorrectly, the first pic is pre service the second is what it looks like now......





[notenoughtime]

I think someone mentioned that the butterflies where possibly the wrong way round due to you winding the mixture screw all the way in

[Huge]

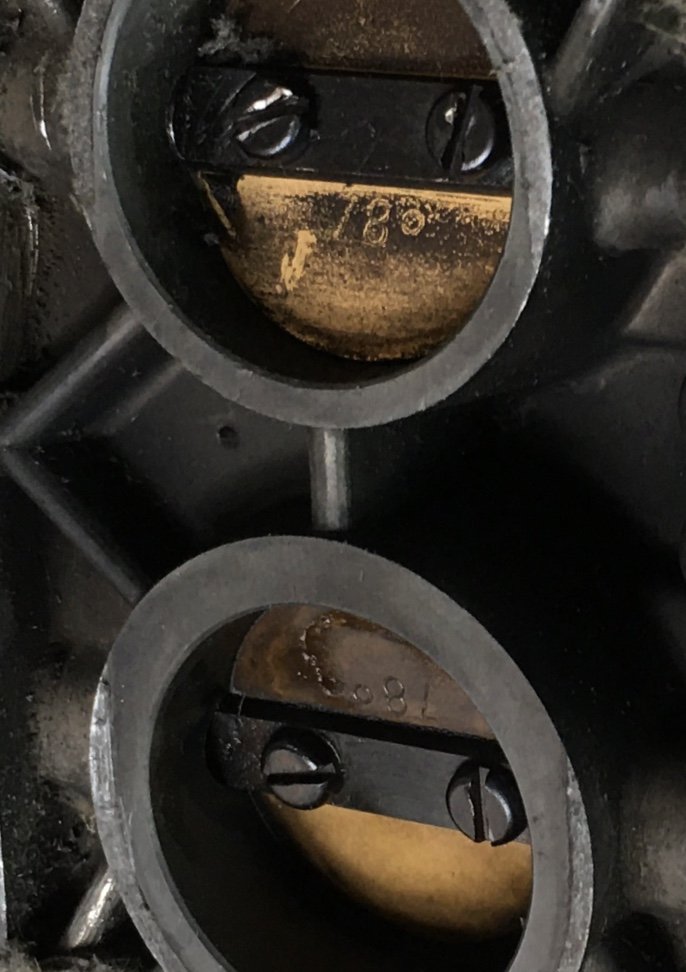

Yes, Johnny boy told me it couldn’t be right then I looked at Rays & you could see the 78 on the butterflies - I had to check mine &.......🤐

[Huge]

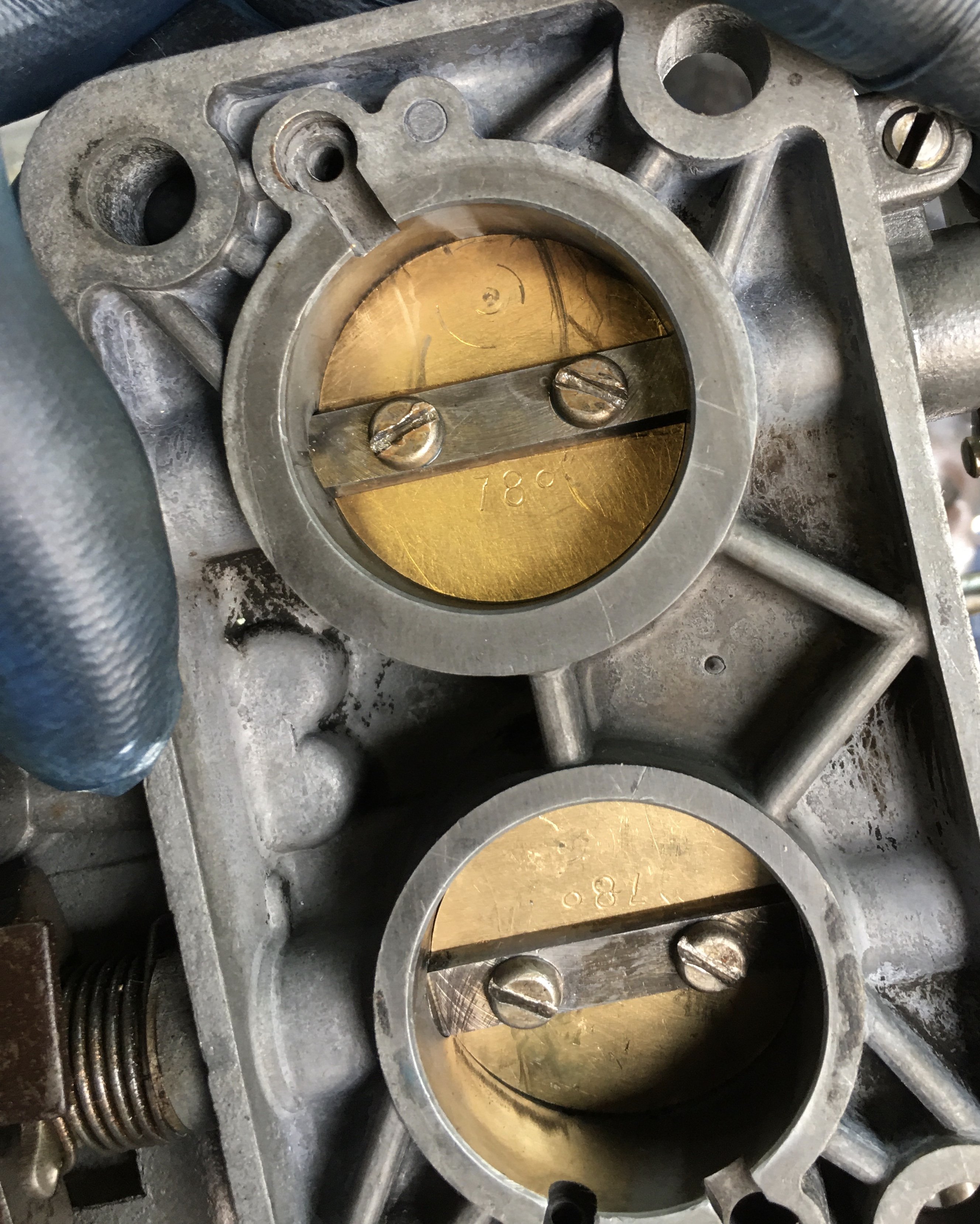

So - I’ve removed both butterflies, turned them over so the 78 degrees marking on both is closest to the centre (Top Tip) & the throttle & choke mechanism is much smoother & both butterflies close w/out a gap this time! Mix screw now x2 turns out - we’ll see 👍🤔

[Johnny Boy]

Don't forget to make sure the screws are secured 🙄

[Huge]

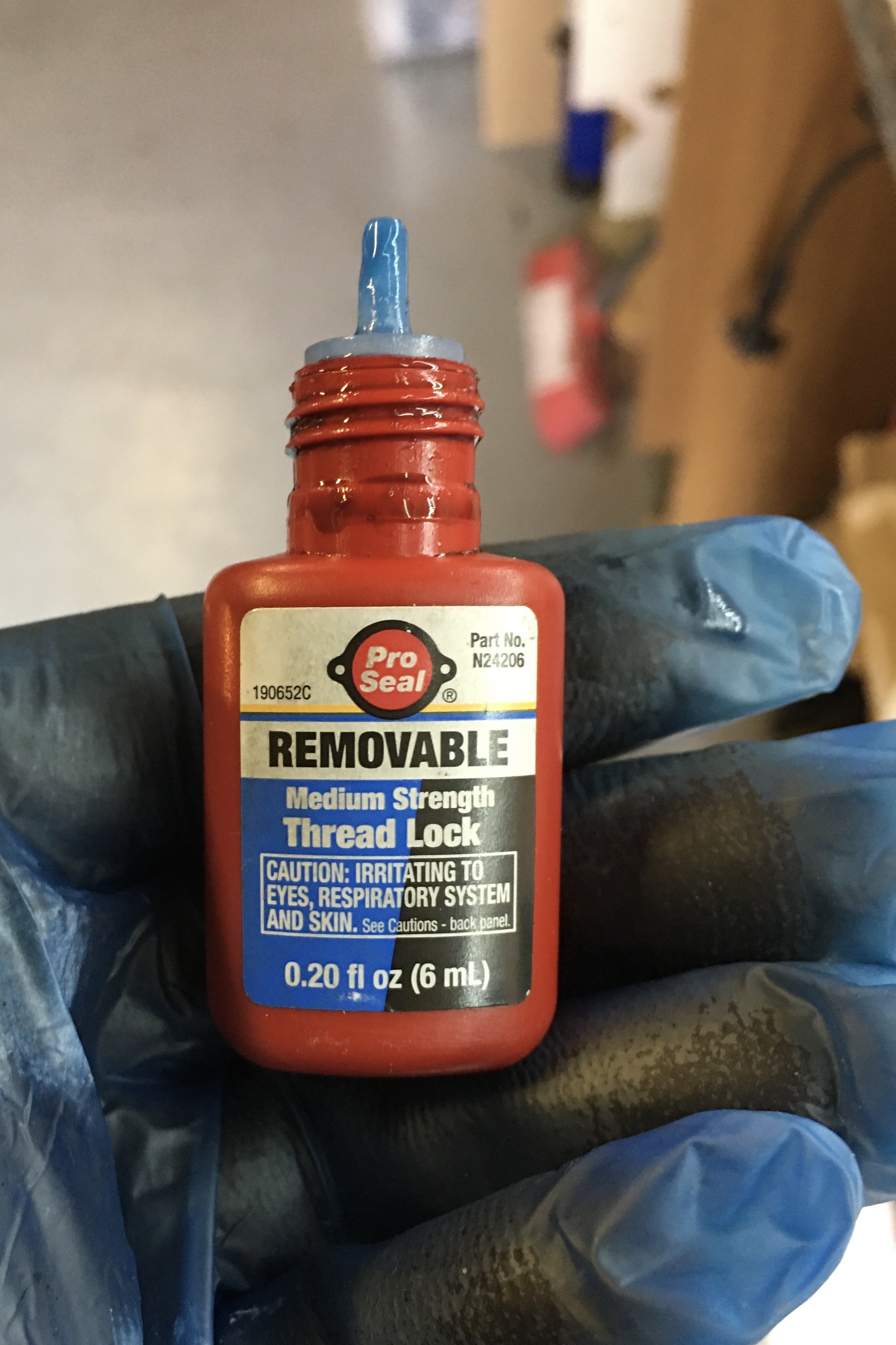

Thanks for that I did put a tiny drop of this onto each screw thread.

[Johnny Boy]

👌

[Huge]

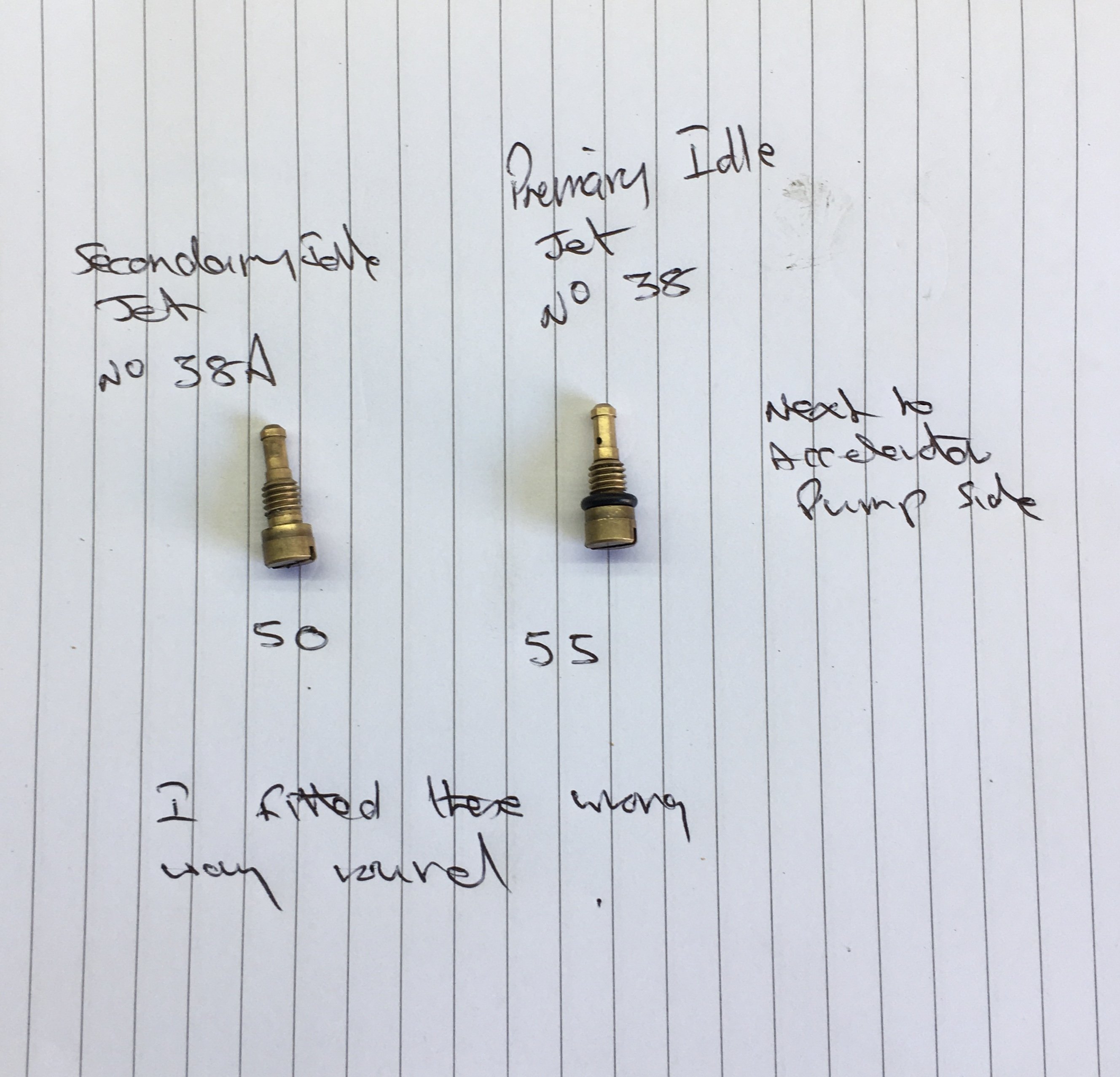

I’ve fitted the Primary Idle Jet (55) & Secondary Idle Jet (50) the wrong way round - but what difference would that make?

[notenoughtime]

It wouldn’t run right

[Johnny Boy]

What he said😀
