mk 1 escort

[terry]

Hi all need a bit of help got a 4 speed gearbox for my escort but thrush bearings missing can anybody tell me which one a need ? i have 2 numbers 71BG 700 6JC or 72WO 7A040EA thanks

[Vista]

Would guess that the type of four speed box dictates the choice of thrust bearing, do you know which type of box you have?

[terry]

Hi no all i know is wont i put up i was hopeing someone on hear might be albe to help

[Vista]

Can you post up a few pics of th gearbox in question?

[terry]

Can you post up a few pics of th gearbox in question?

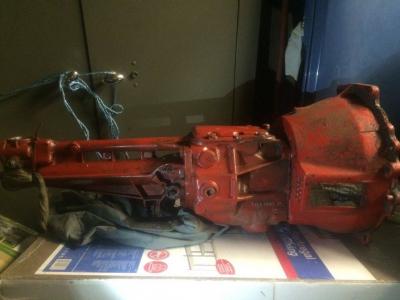

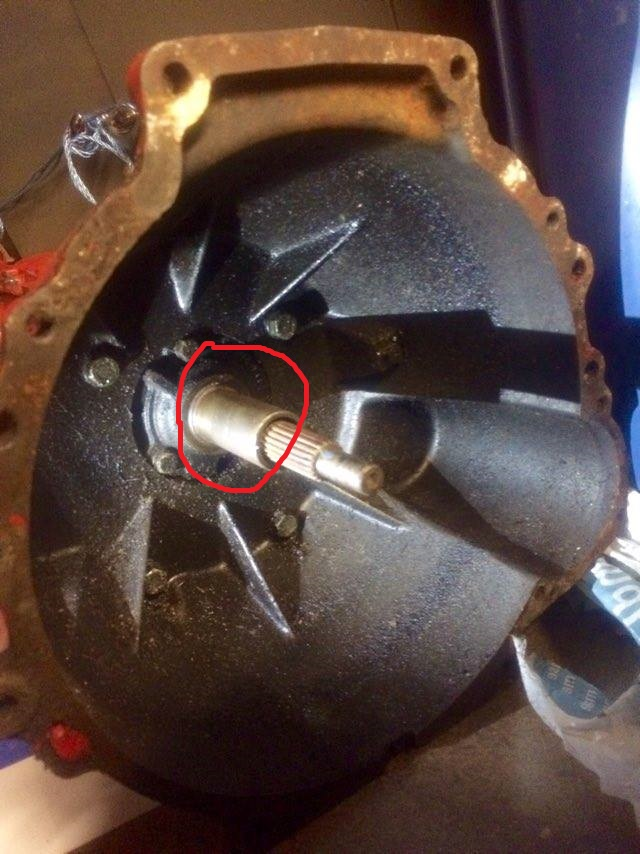

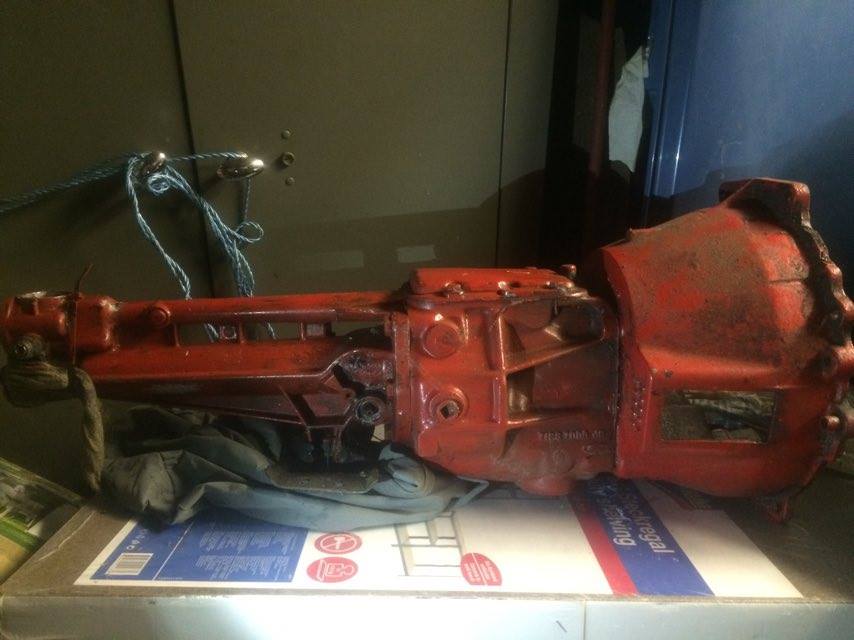

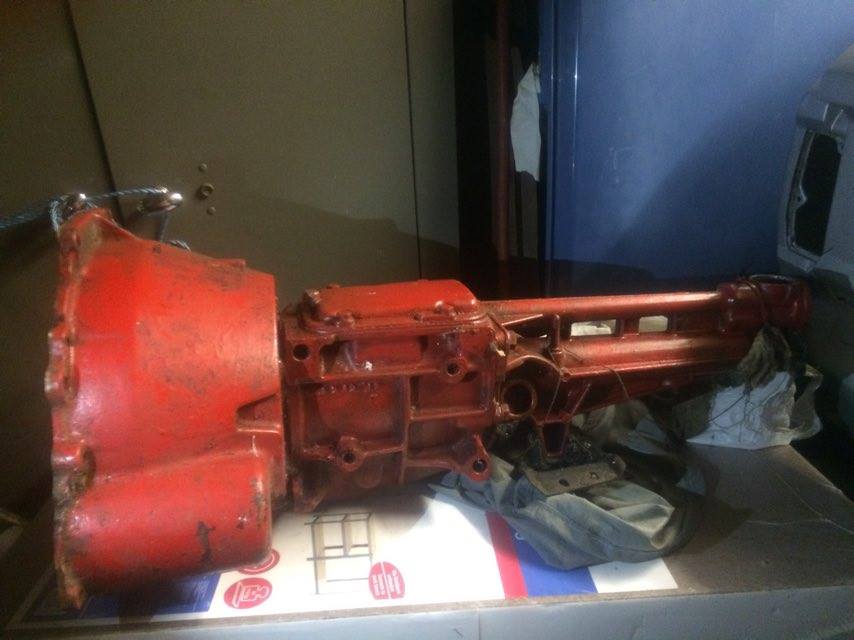

Here is the gearbox. I think it might be a type 3. Have circled a part which I'm having problems with getting a thrush bearing to fit.
Any idea what size bearing?





[colr6]

It's a type three box, burtons list a release bearing for it should be 7/8 shaft 20 spline can't find a cross ref for either of your numbers. Hope this helps a bit

[Vista]

Looks like a Type 3 to me too



http://www.burtonpower.com/tuning-guides/tuning-guide-pages/ford-type-3-gearbox-guide.html



How about this one? Perhaps worth a call to them at Burton before ordering though



http://www.burtonpower.com/clutch-release-bearing-ford-cortina-capri-1-3-1-6-ecb110.html

[terry]

Ok thanks for your help
