type 9 (is this a V6 box?)

[Bigfish]

afternoon

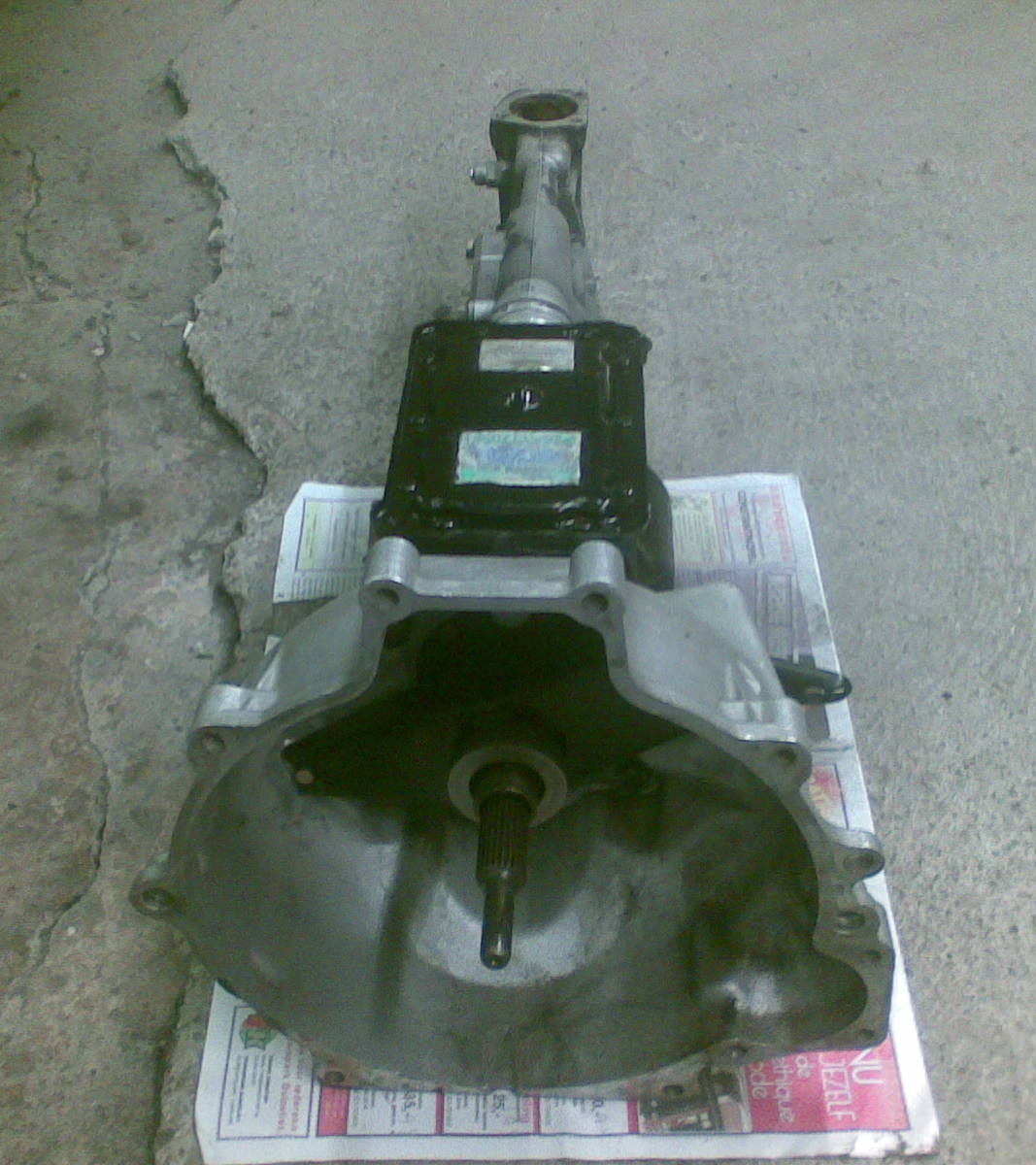

can anyone tell.me if this box is the v6?



[John escort mk1V6]

No thats a 4cil gearbox with a 4cil bellhousing , this is a 6cil sorry.

[Bigfish]

i thought i was a 4 cylinder but i had so many issue trying to get it to engage with the engine i thought something was up. ill have to have another look

[HotRodMatt]

Have you got the correct clutch plate? They can be awkward to put back on, but a bit of a wiggle and lifting the back of the box higher works.

[Bigfish]

im not sure i just picked up the engine just wanted to chuck it in so i can make sure everything fits as should. (going in a kit car) thought it would be easy like my last but nope. no amount of wiggling. would get them to join.



ill take a pic of the clutch it may shed some light

[colr6]

Box should be 1" 23 spline, so should be clutch plate used. Another thing that would stop it going together is incorrect / damaged spigot/ bearing very mis aligned clutch.

[deltamal]

V6 is type 9 with a long input shaft, it should project beyond the belhousing, 23 spline.
